报错详情:
No outgoing sequence flow of the exclusive gateway 'exclusivegateway1' could be selected for continuing the process
启动XX流程出错!出错
No outgoing sequence flow of the exclusive gateway 'exclusivegateway1' could be selected for continuing the process
服务器错误代码:500,详细信息:No outgoing sequence flow of the exclusive gateway 'exclusivegateway1' could be selected for continuing the process

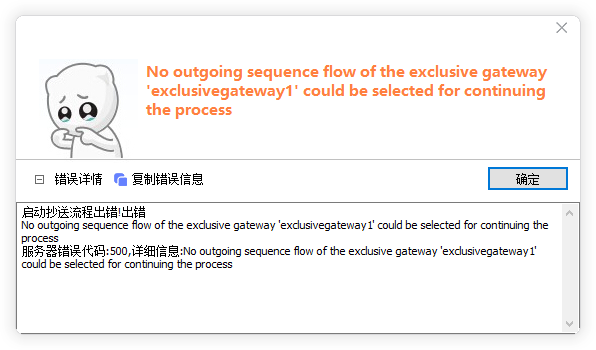

报错截图1:

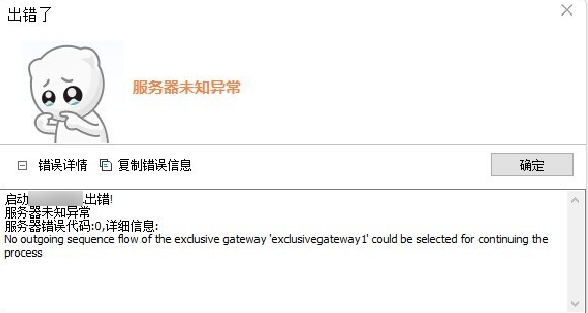

报错截图2:

报错原因:
业务流程用了判断节点,但是当前启动的流程表单不满足任何一条流程走向,导致无法确定下一个任务节点
解决方案:
检查判断节点出口连接线的条件,确保流程能走下去
